Pair a terminal with your Square location to take card payments from work orders. Generate its device code from Settings in TireTutor.

Before you start

You need these items:
  • A Square location mapped to your store. Open Settings → Integrations. In the Square panel, use Change location when Square location: Not set appears.
  • Admin access on the store or its dealer. Without it, Connect Square Terminal is unavailable. Ask an Owner or Admin at your store to grant access or to generate the code.
  • The terminal on your Wi-Fi. A terminal that is off the network cannot redeem the code. Both procedures below include that step.
You can take payment by link before a terminal arrives. To order one, select Buy a terminal. Next, select Continue to Square; Square’s website opens in a new tab.

Sign a terminal in

When: The terminal shows Square’s sign-in screen.
Keep TireTutor open next to the terminal. The code expires, so complete the steps before its countdown ends.
1

Open the terminal's settings

On the terminal, select the unlabeled gear icon beside Sign in.
2

Open Network

Select Network.
3

Join your Wi-Fi

Choose your Wi-Fi.
4

Return to the sign-in screen

Select the back arrow.
5

Open the Square panel

In TireTutor, open Settings → Integrations.
6

Generate a device code

Select Connect Square Terminal. The dialog generates a device code.

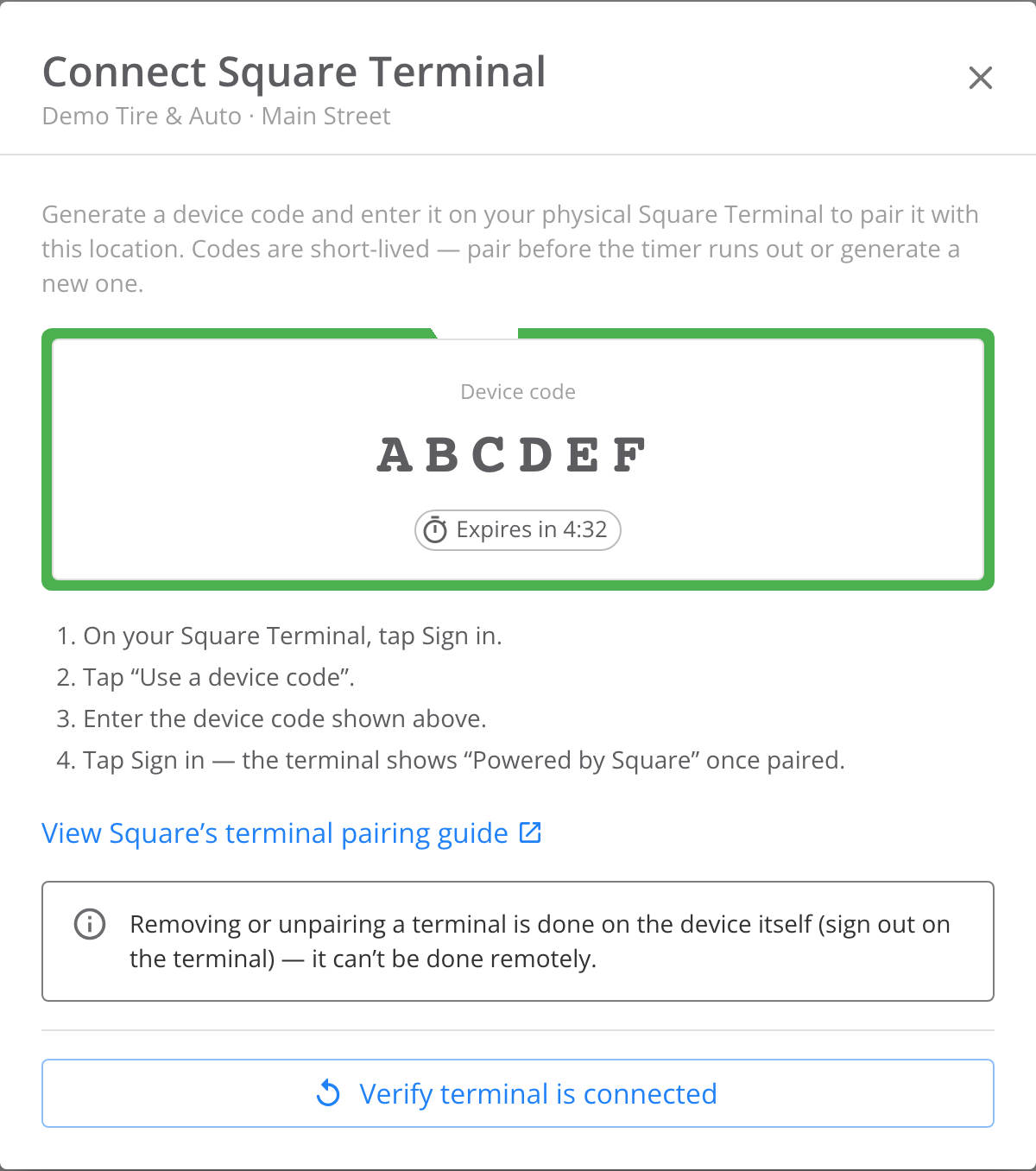

Connect Square Terminal dialog showing the store and Square location, a six-character device code inside a green countdown ring, a chip reading Expires in 4:32, the four on-device steps, and a Verify terminal is connected button.

The Connect Square Terminal dialog, with a device code and the time left before it expires.

7

Start sign-in on the terminal

On the Square Terminal, select Sign in.
8

Use the device code

Select Use a device code, below the Continue button. An email and password sign-in does not pair the terminal with TireTutor.
9

Enter the code

Enter the Device code from TireTutor.
10

Complete sign-in

Select Sign in. The terminal shows Powered by Square after pairing.
11

Verify the terminal

In TireTutor, select Verify terminal is connected.
TireTutor shows Terminal paired to this location. If the confirmation does not appear, complete the terminal steps. Then select Verify terminal is connected again.

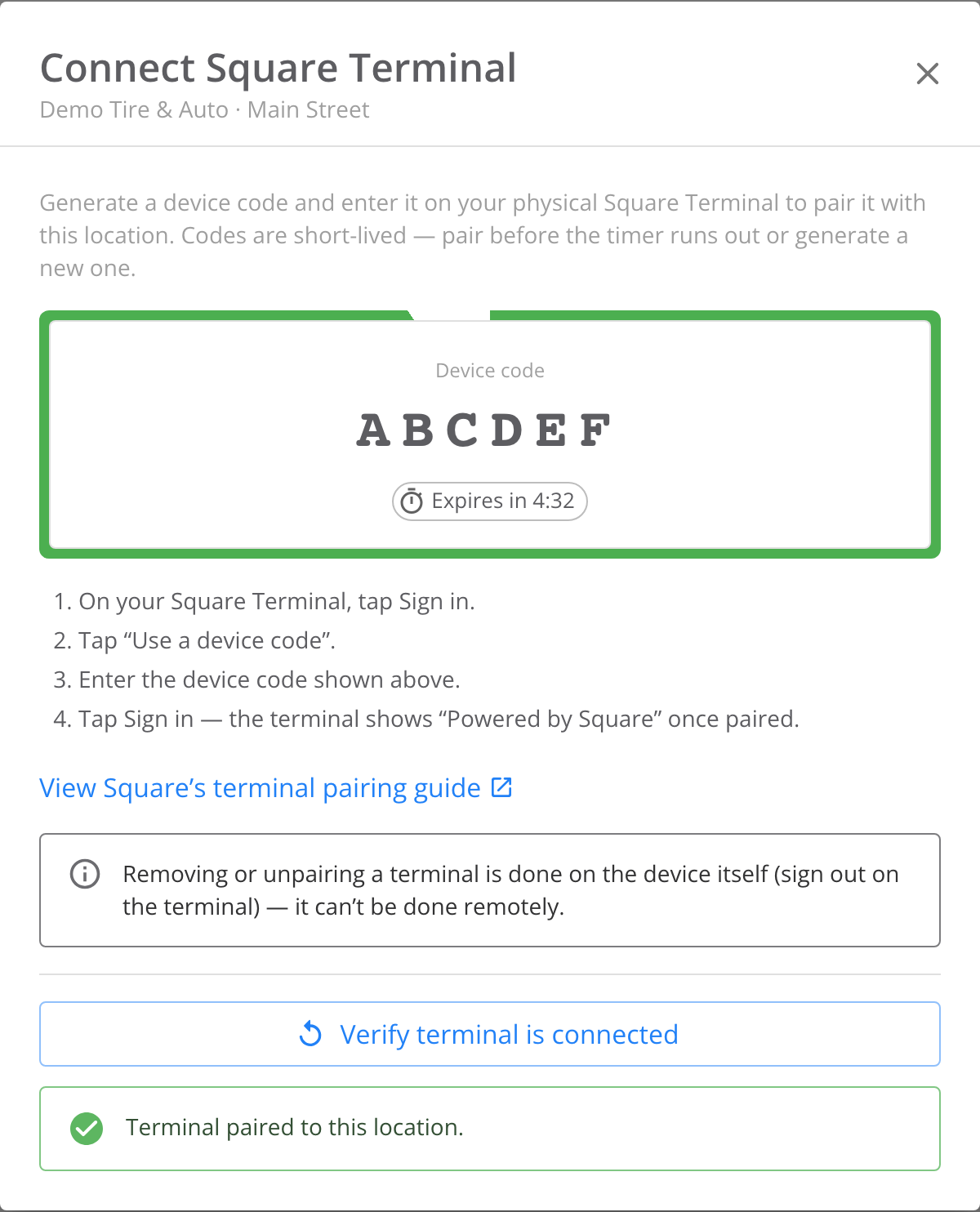

Connect Square Terminal dialog after verifying, showing a green-bordered confirmation reading Terminal paired to this location beneath the Verify terminal is connected button, with the device code and countdown still above it.

The confirmation that appears once TireTutor can see the paired terminal.

Pairing does not confirm payment readiness. Complete Confirm the terminal is ready.
If the code expires, select Generate a new code. Repeat the terminal steps with the replacement code.

Set up a terminal that’s already signed in

When: The terminal shows another Square setup instead of the sign-in screen. A terminal signs in to one place at a time. TireTutor cannot sign it out remotely, so sign out on the device.
Signed in with the Square Point of Sale app? Signing out on the terminal alone does not clear it. First forget the device in Square.
Keep This device only when the terminal asks where to sign out. Sign me out of all devices signs out every terminal on these Square credentials.
1

Open More on the terminal

Select More, the last tab along the bottom of the screen.
2

Find the sign-out link

Scroll to the bottom. The Sign out link carries your business name, below Customize and above Switch location.
3

Start sign-out

Select Sign out.
4

Keep This device only

The terminal asks Where do you want to sign out? Keep This device only selected.
5

Confirm the sign-out

Select the red Sign out button at the top right. The terminal returns to the sign-in screen.
Then follow Sign a terminal in from step 1. TireTutor has no remote unpair action. Sign out on the terminal before you sell, return, or move it to another store. If you no longer have the device, contact Square.

Confirm the terminal is ready

When: You finished pairing, or the terminal does not take a payment. Open Settings → Integrations. In the Square panel, select View terminals. Find the terminal. Review its Status.

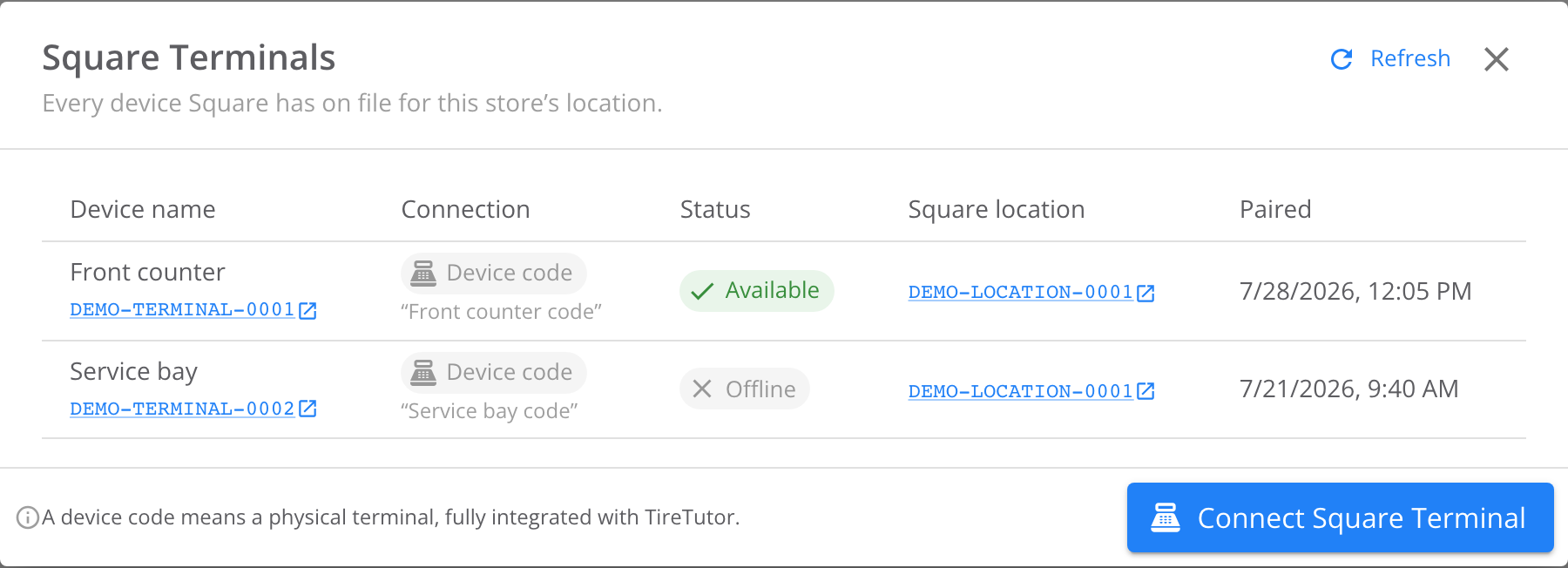

Square Terminals dialog listing two devices in a table: Front counter marked Device code and Available, and Service bay marked Device code and Offline, each with its Square location and the date it was paired.

The Square Terminals dialog listing two paired devices — one available, one offline.

The list shows only terminals paired with a TireTutor device code. It does not show mobile devices.
If you just powered on the terminal, select Refresh in the dialog. Square takes a moment to report a device as available.
The terminal appears with Device code and Available.

Choose which terminal takes a payment

When: Your store has several terminals, or this browser needs a different terminal.
1

Open the terminal choice

On the work order, find the Terminal: row. It shows a terminal name or Default.
2

Open Choose a terminal

Select the swap icon beside it, labeled Switch terminal.
3

Check the status

Find the terminal you want. Available means Square reports it as available. Offline means Square does not report it as available.
4

Select the terminal

Select the row for that terminal.
5

Save the choice

Select Save.
The Terminal: row shows the selected device. TireTutor uses this terminal in this browser until you change it.
To remove this browser’s preference, open Choose a terminal. Select Clear selection. Without a saved choice, TireTutor uses the first paired terminal for the location, even if it is offline. Always pick a terminal that shows Available. To rename a terminal, expand How terminal selection works in Choose a terminal. It shows the on-device path to Device name.

When a terminal cannot take payments

Select Connection health in the Square panel first. The dialog finds Square connection and setup issues. It checks the store’s Square connection, not the app on each terminal, so it can pass while one terminal fails. Check these terminal-specific states:
  • Someone signed in to the Square Point of Sale app on the terminal. The terminal can show Available and still refuse TireTutor payments. TireTutor refuses the charge with Not fully integrated with TireTutor POS. Signing out on the terminal alone does not clear it. Open Square Dashboard → Devices. Select the device. Choose Forget. Then pair it again with a device code.
  • A terminal shows Offline. Check its power and its Wi-Fi connection. Select Refresh in Square Terminals.
  • A row shows Signed into a different Square location. TireTutor refuses the charge with Paired at a different location. Sign out on the device. Pair it again with a device code generated from this store.
  • A terminal is missing. Pair it with Connect Square Terminal and a device code.

Resolve a pending payment

Override Payment Pending changes the work order’s status. It does not cancel the payment in Square. Before retrying, confirm in Square that the original payment did not complete.
An Owner or Admin can return a work order at Payment Pending to In Progress. Then you can take the payment again.
1

Open the work order

Open the affected work order.
2

Open More Options

Select More Options, the three-dot button next to Print Invoice.
3

Select Override Payment Pending

Select Override Payment Pending. Void Work Order is not in the menu while the payment is pending. It returns when the work order is In Progress.

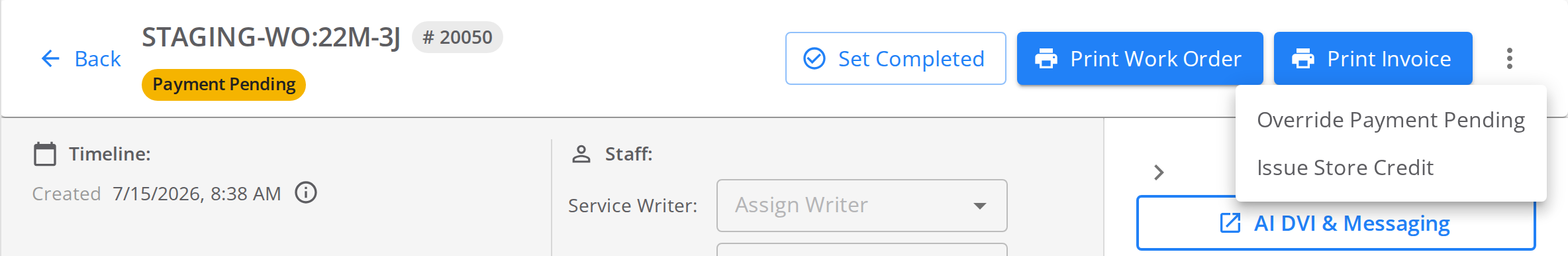

Work order header with a Payment Pending status. The More Options menu is open and lists Override Payment Pending and Issue Store Credit, with no Void Work Order.

More Options on a work order at Payment Pending.

4

Select Override

Select Override. The dialog says the work order goes back to In Progress. Cancel closes the dialog and keeps Payment Pending.

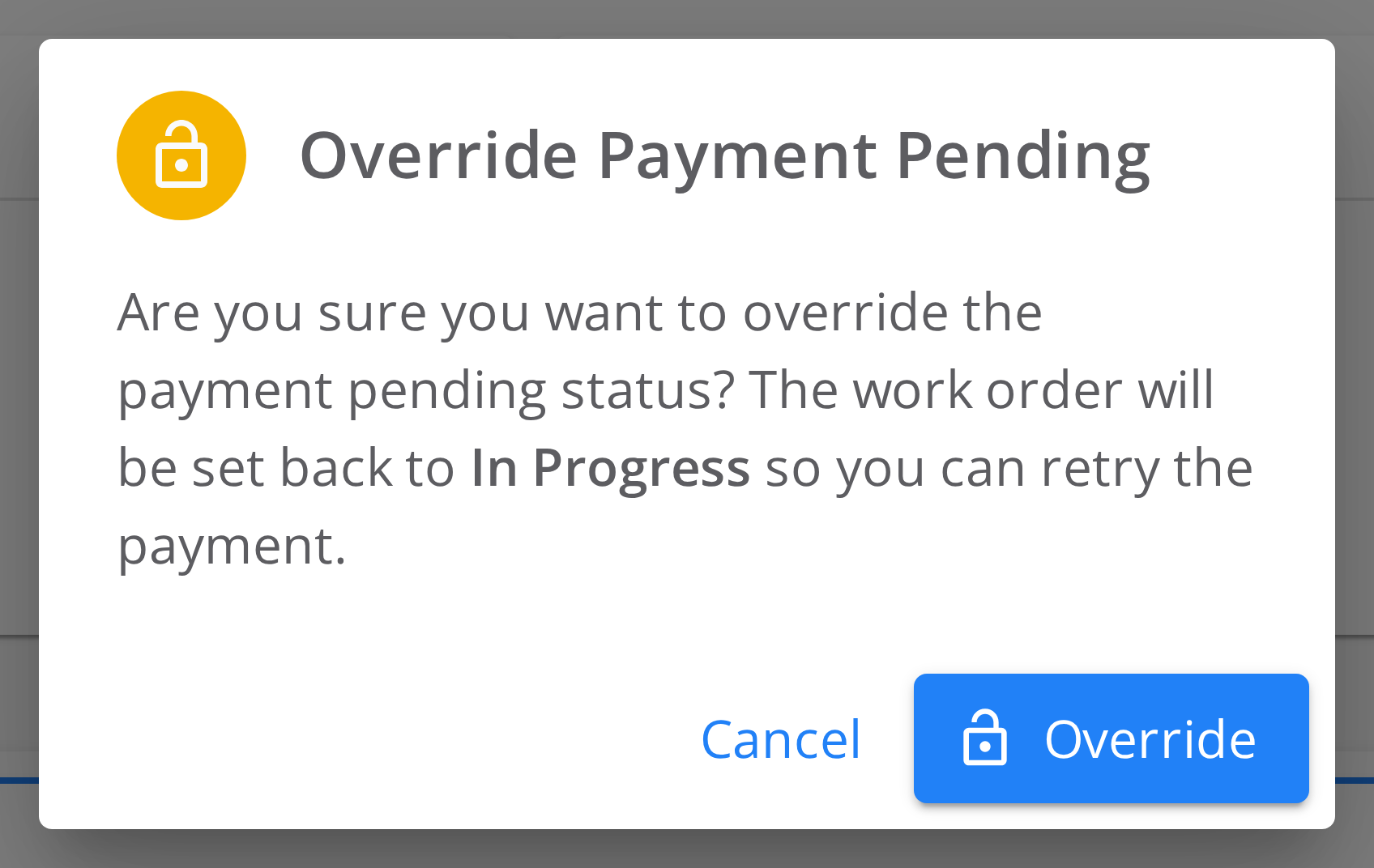

Override Payment Pending dialog. It says the work order will be set back to In Progress so you can retry the payment, with Cancel and Override buttons.

The Override Payment Pending confirmation.

5

Take the payment again

The work order shows In Progress. Take the payment on the terminal, or use a different payment method.
If the work order belongs to another store, it opens in view-only mode without More Options. To change to that store, select Switch in the view-only banner. If the terminal still cannot take payments, contact support with the terminal’s device name and the Connection health result.
A paired terminal is not required for payment links.
